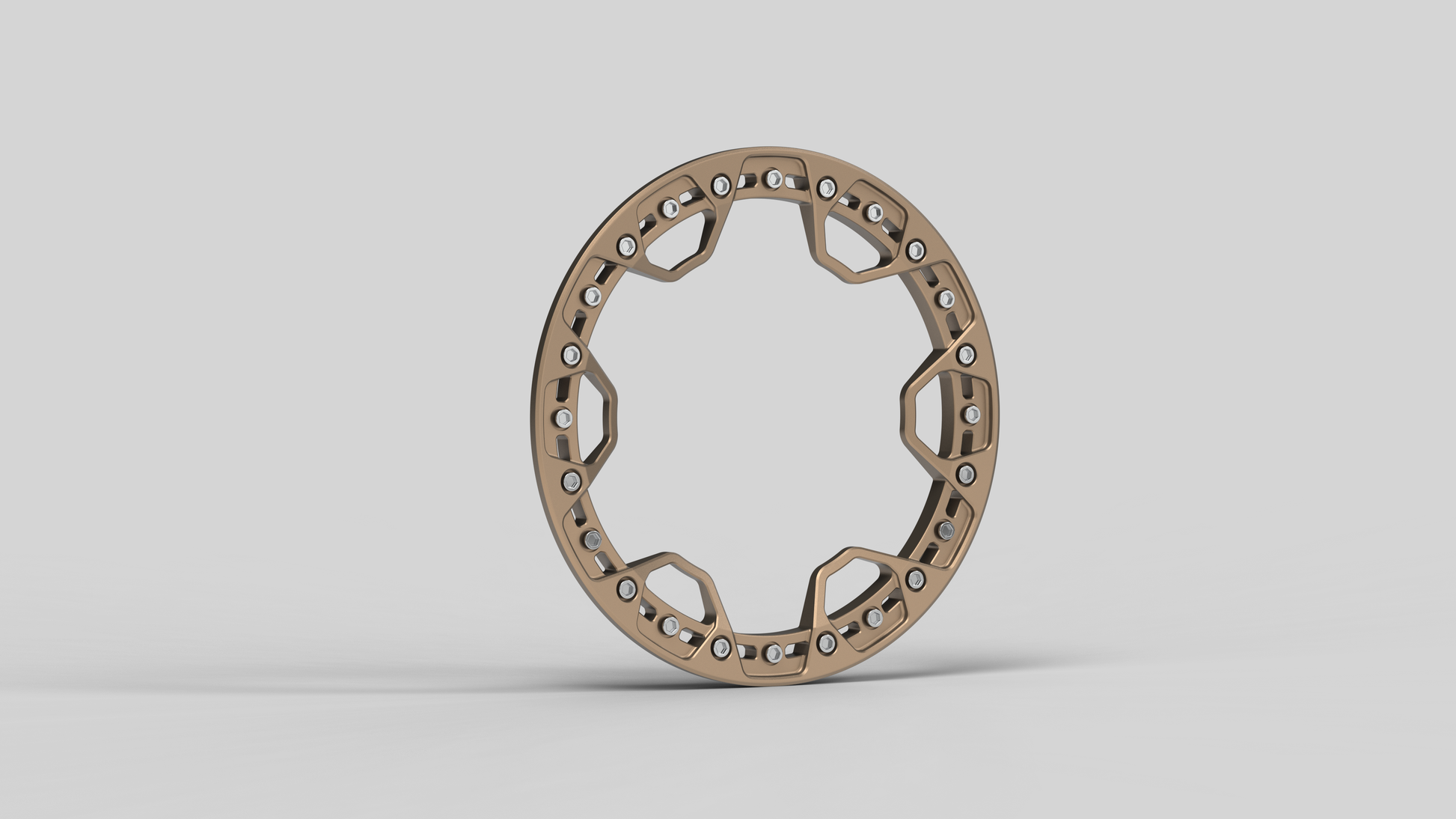

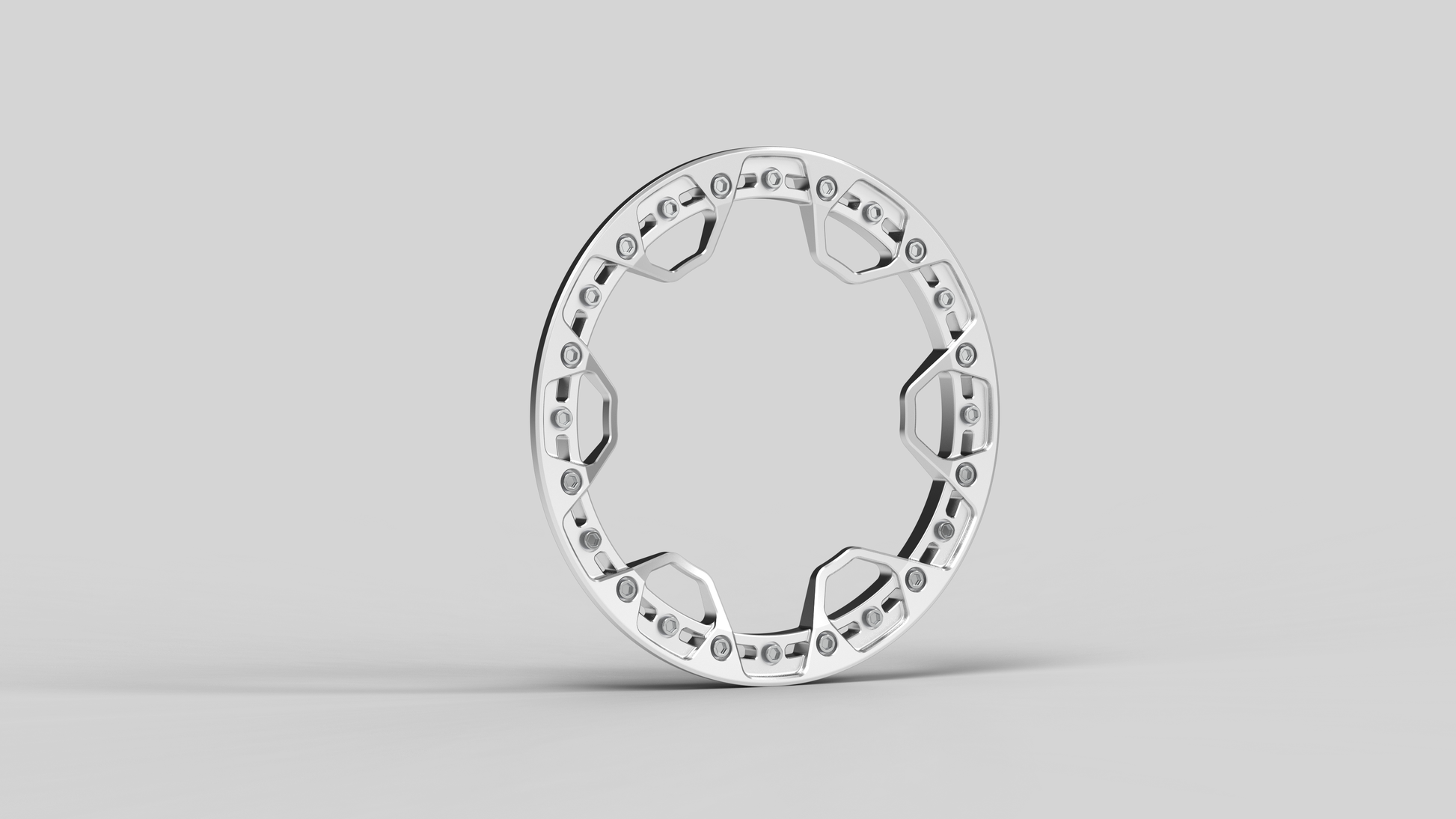

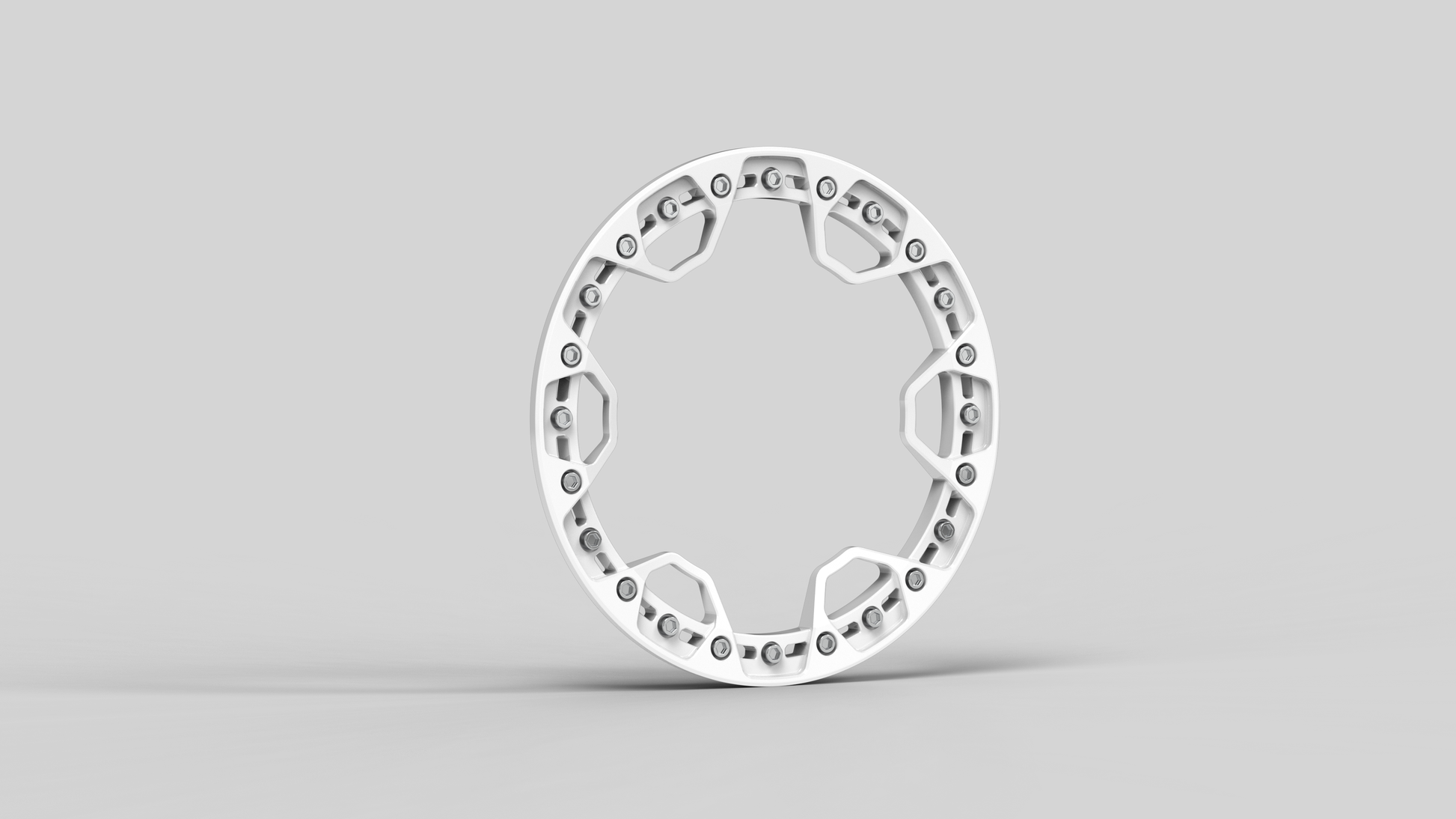

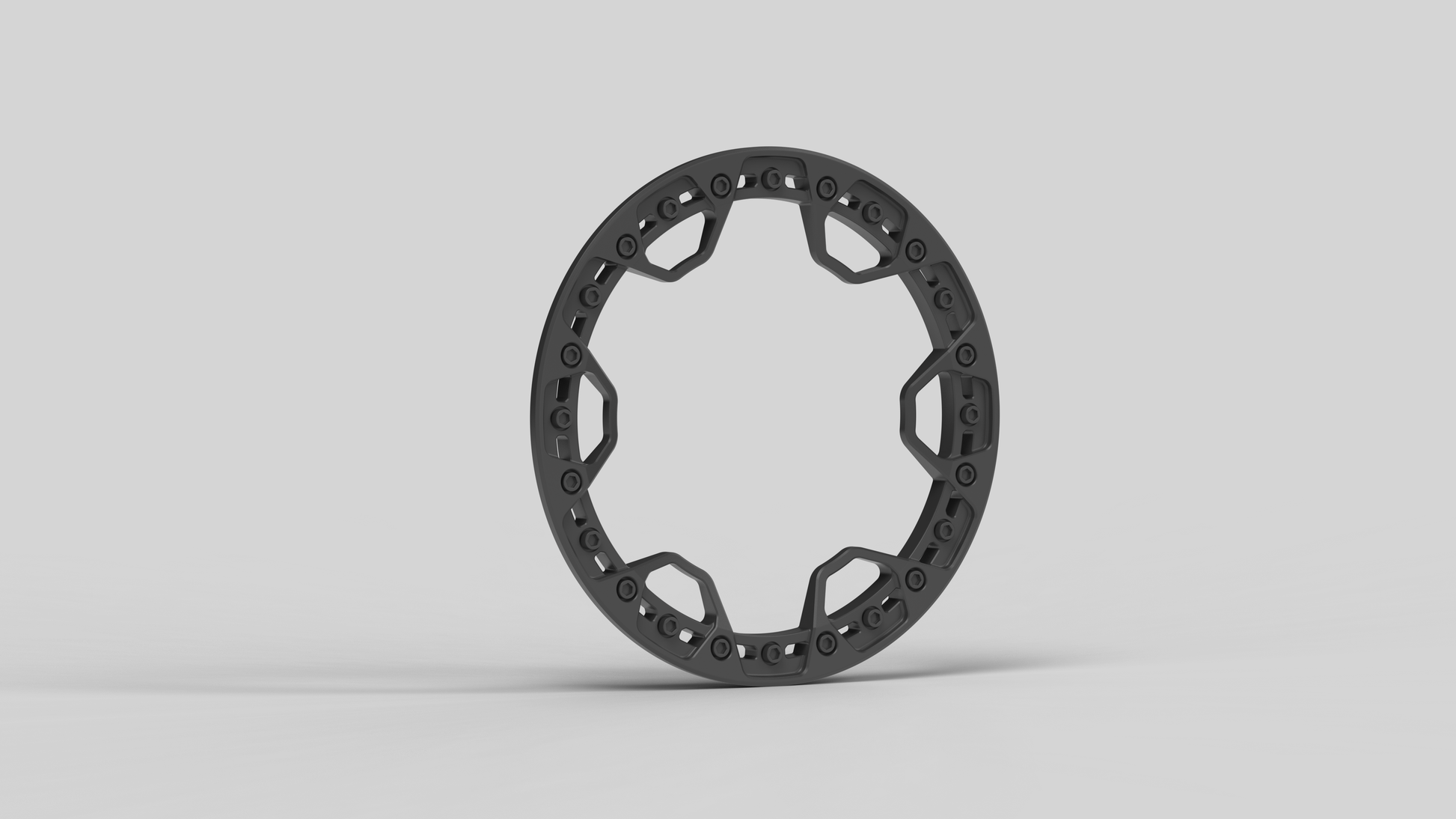

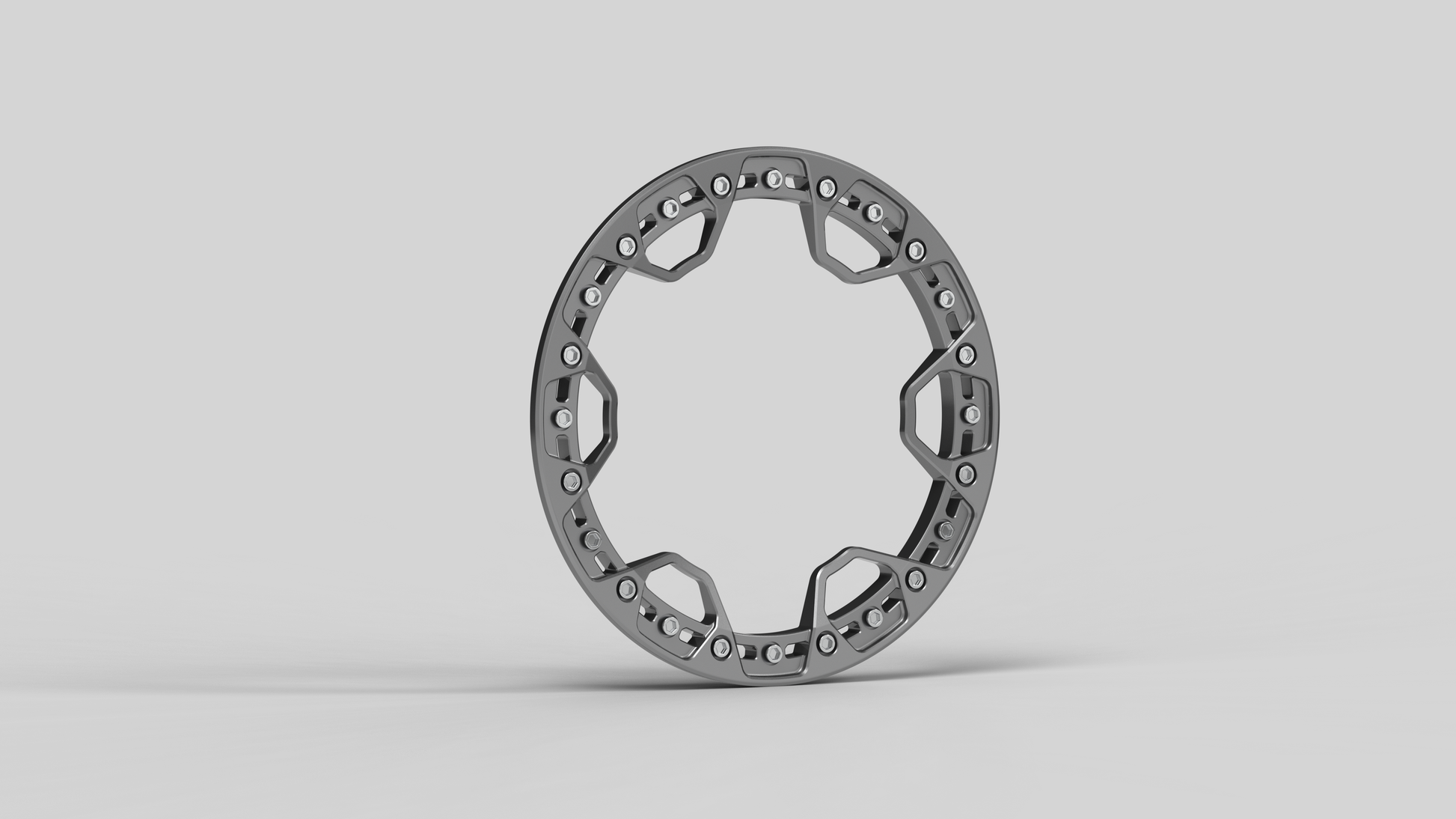

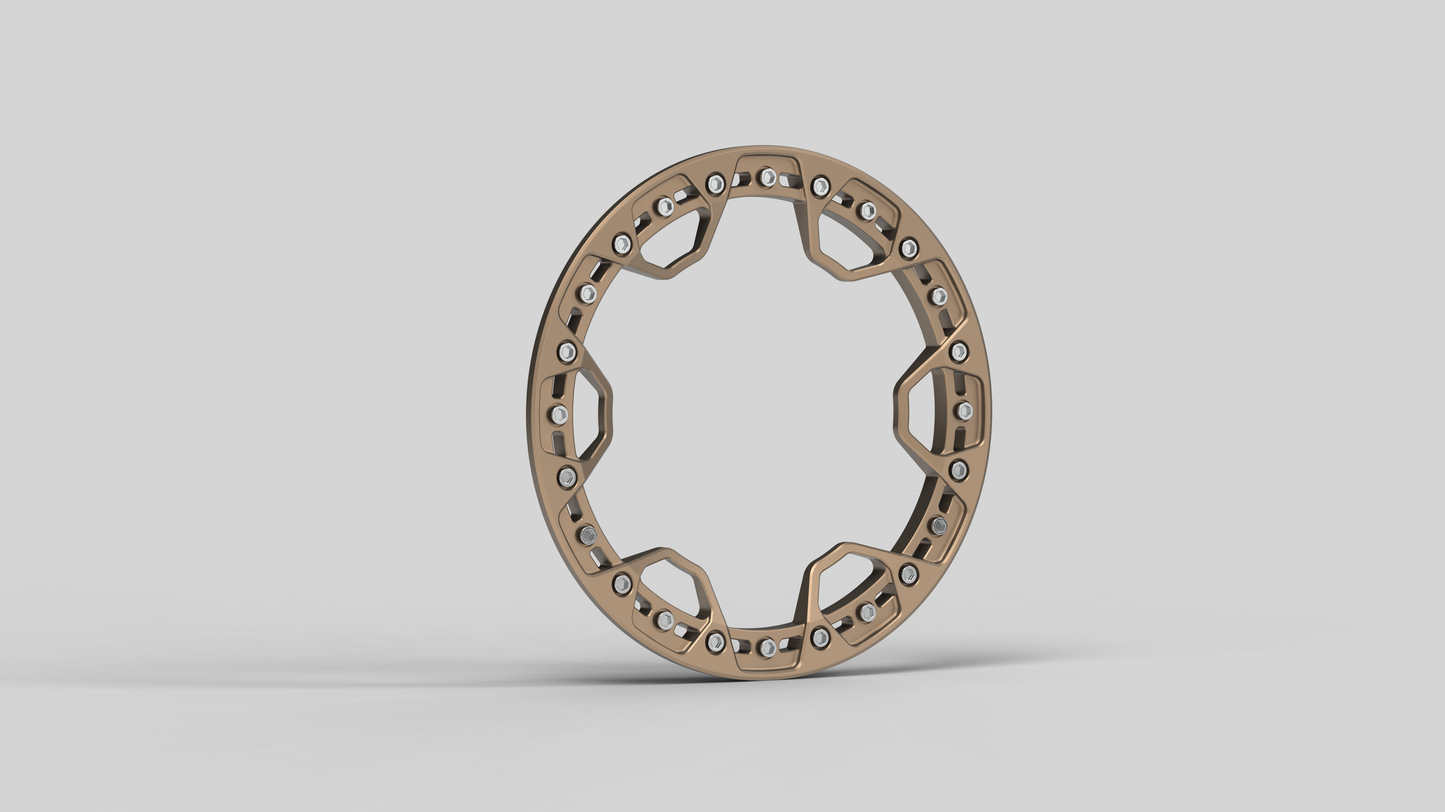

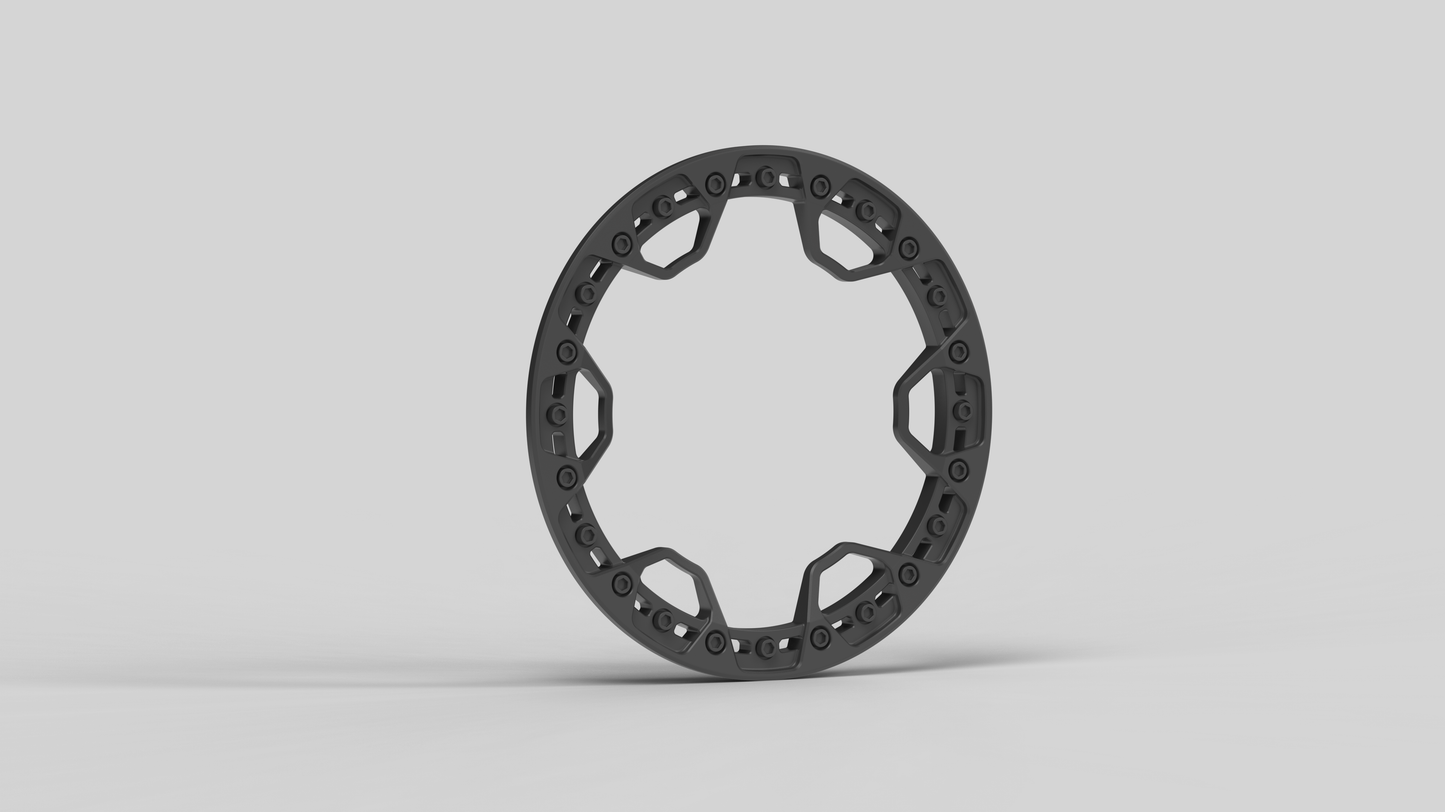

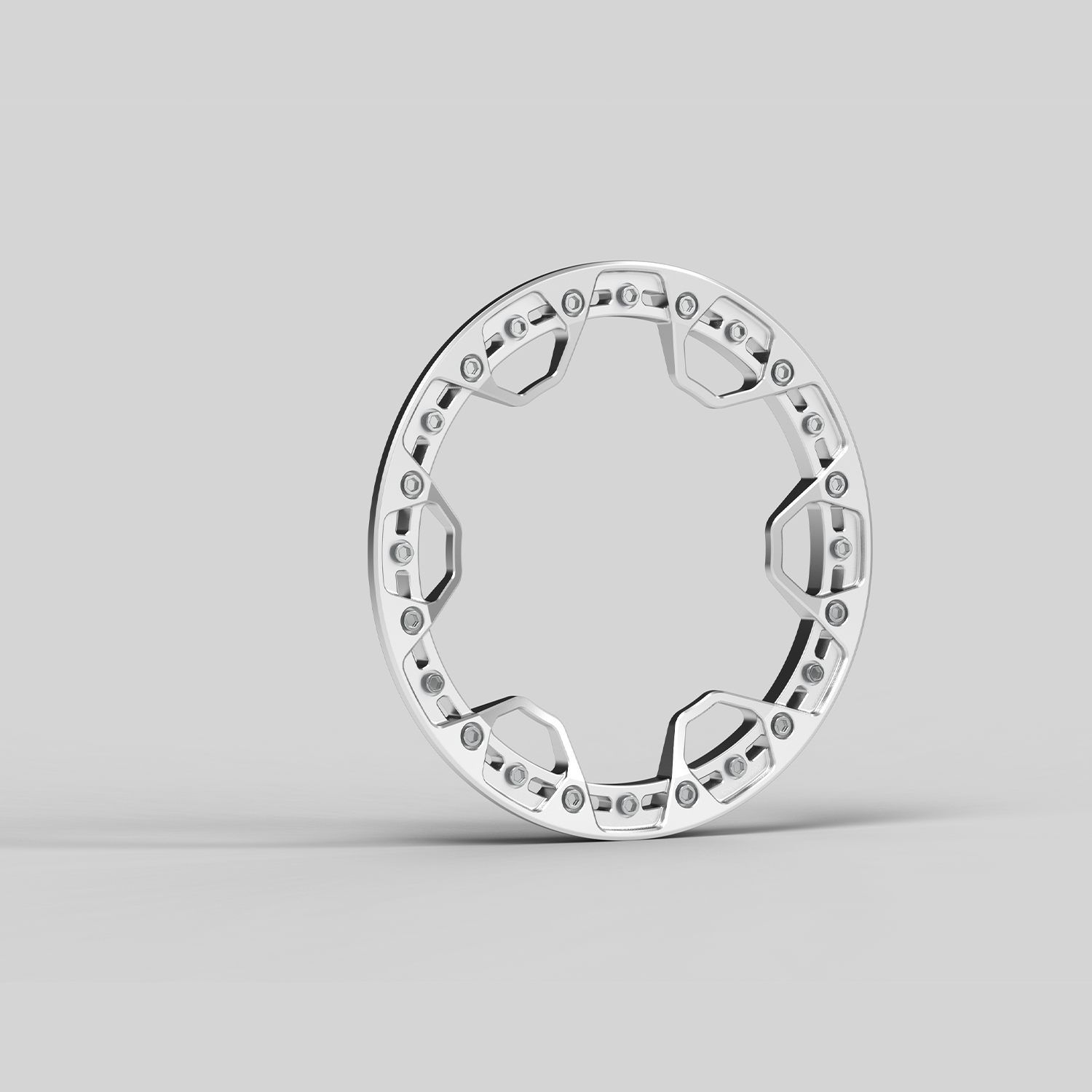

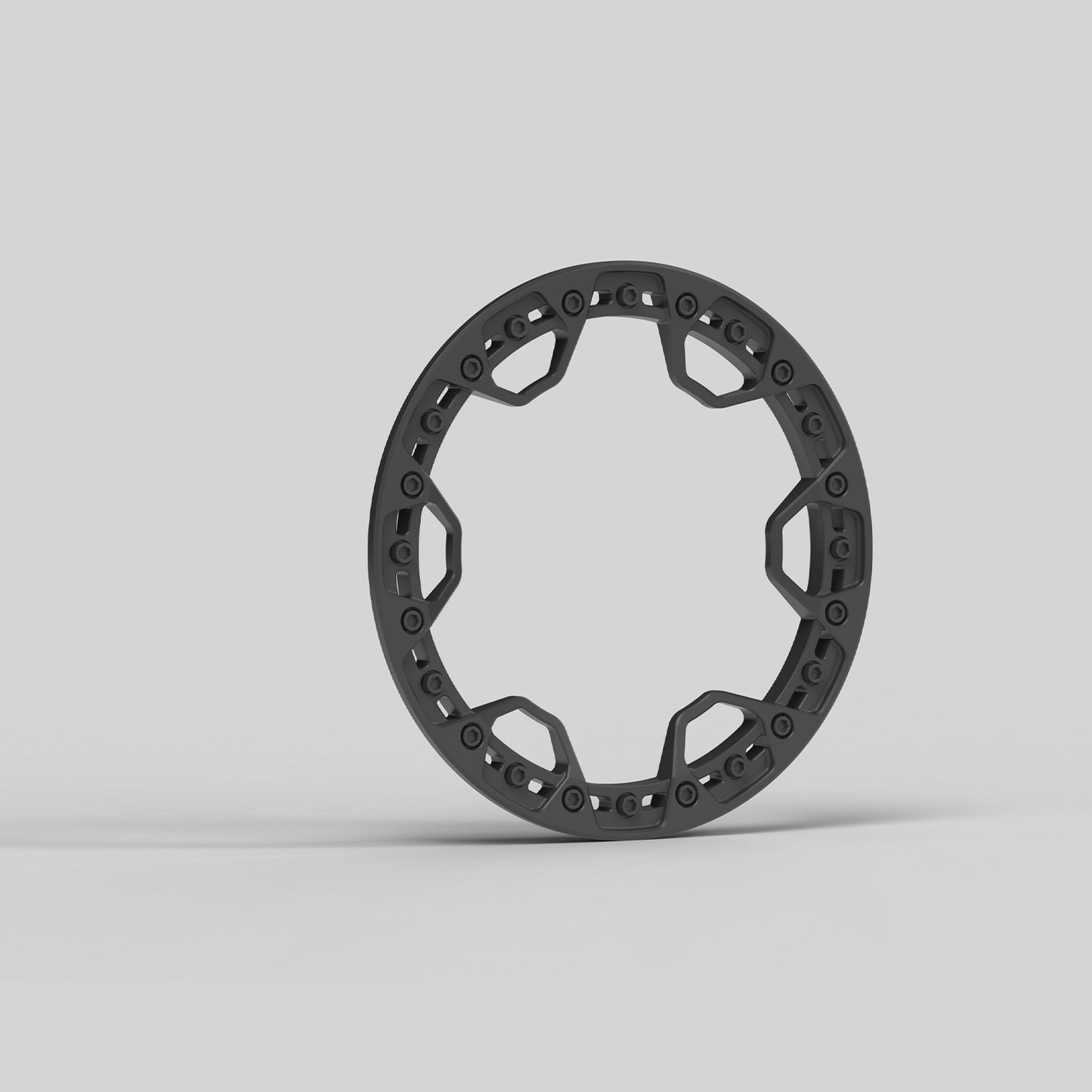

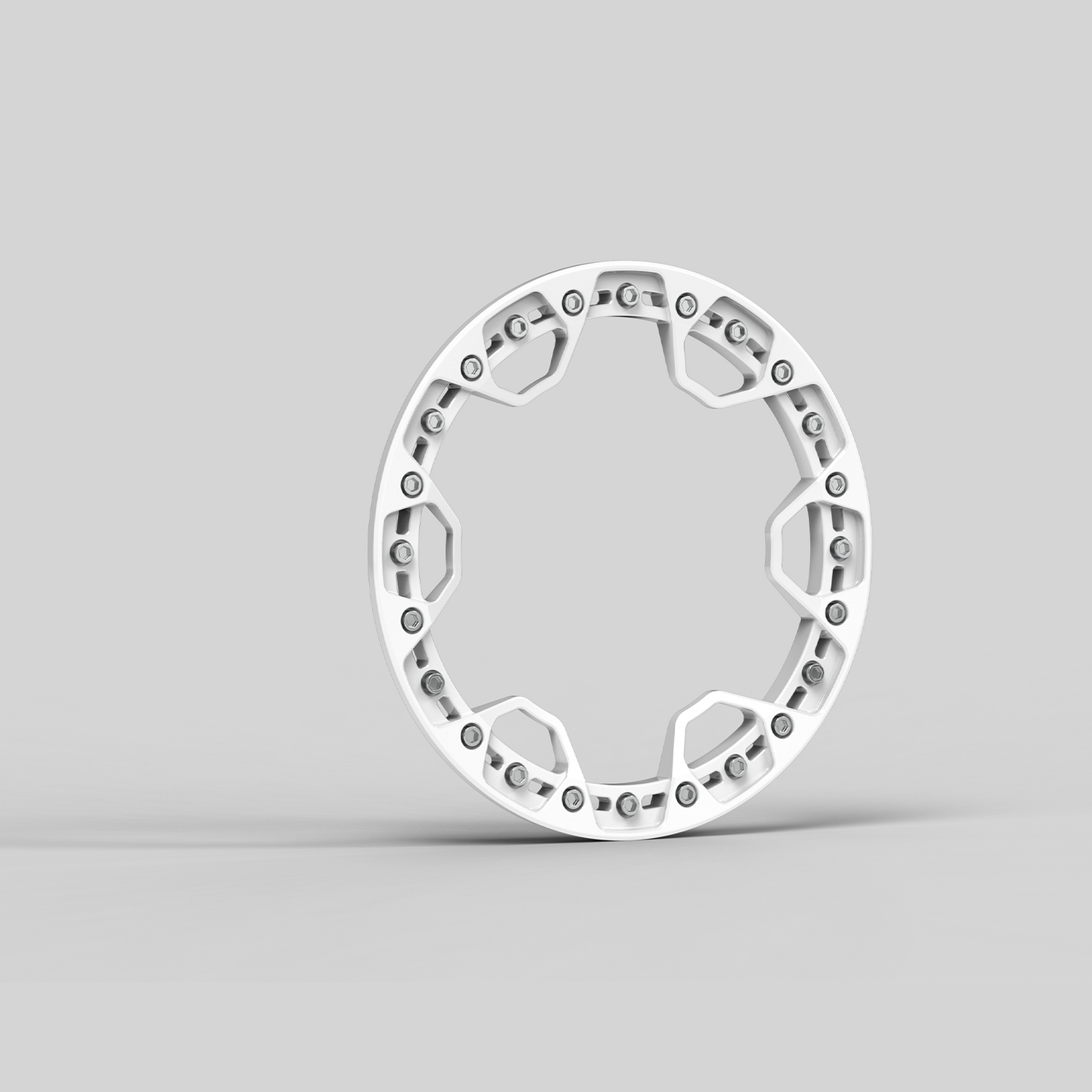

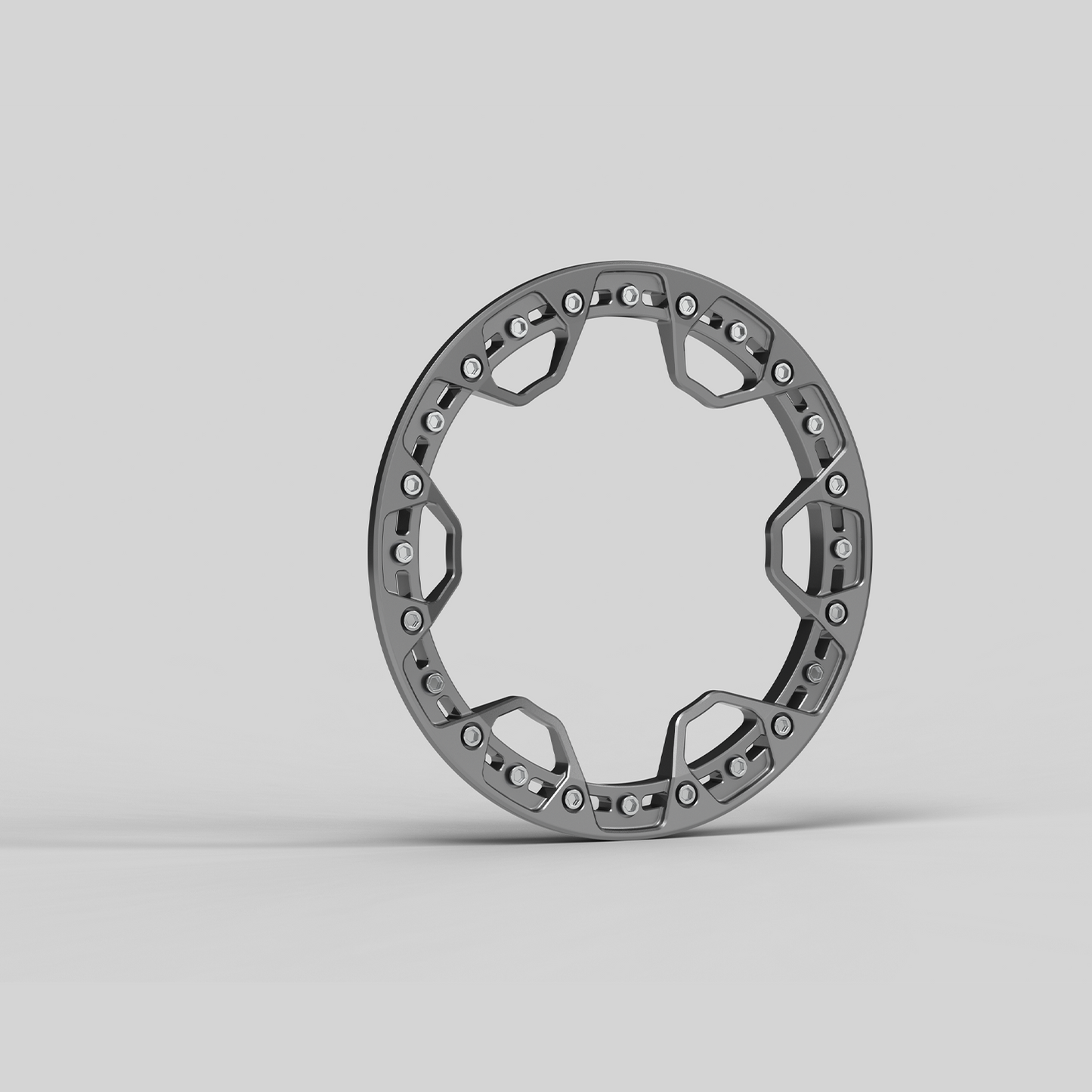

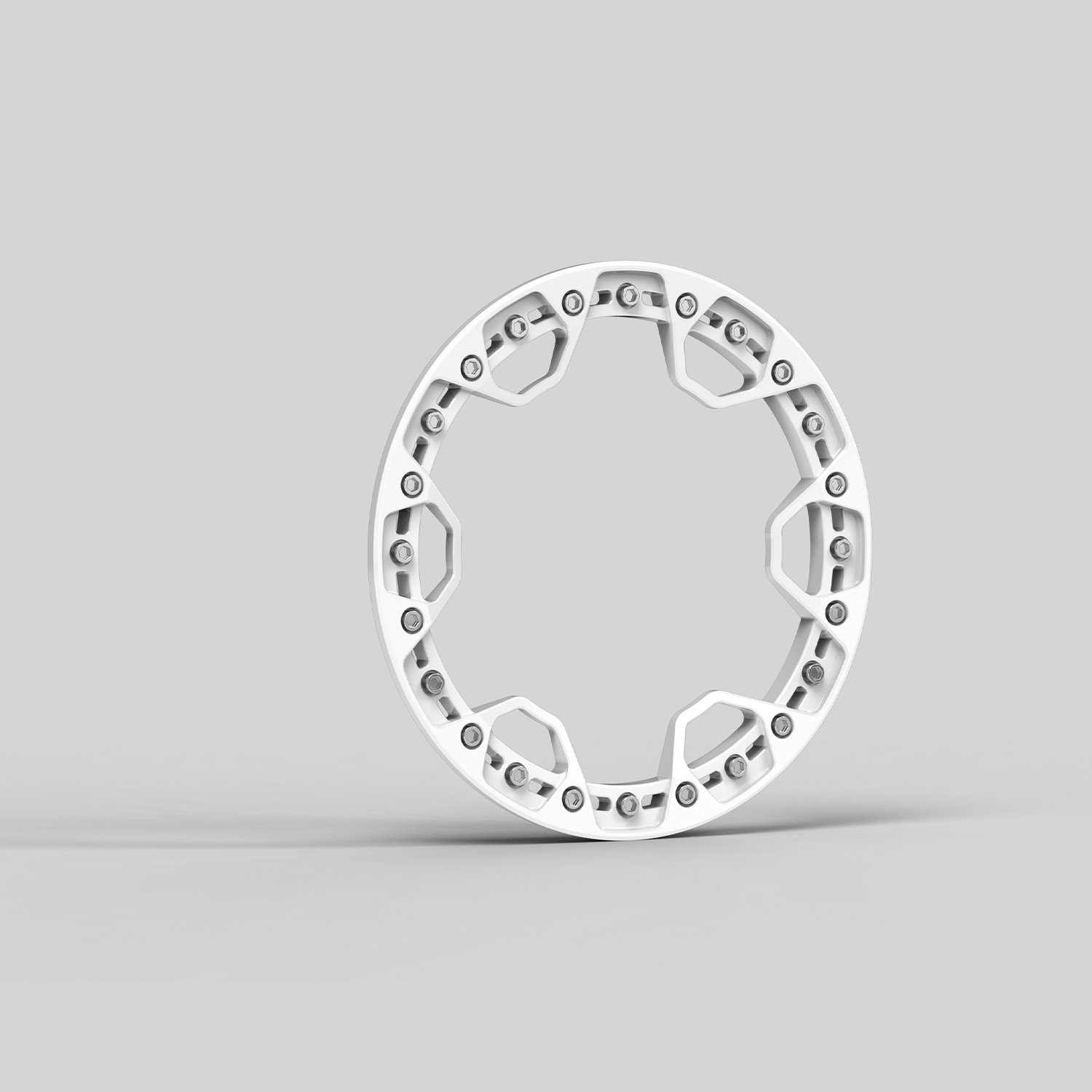

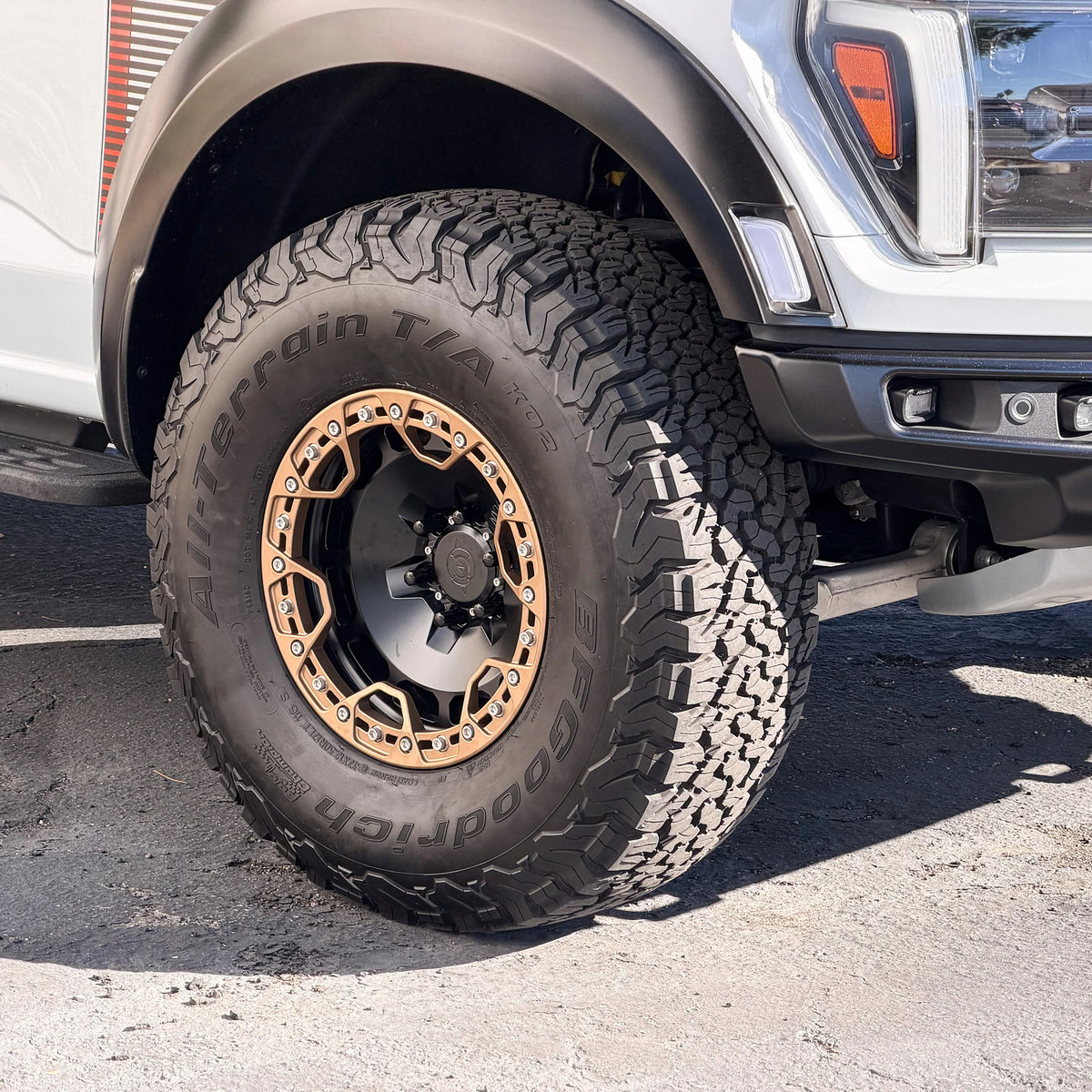

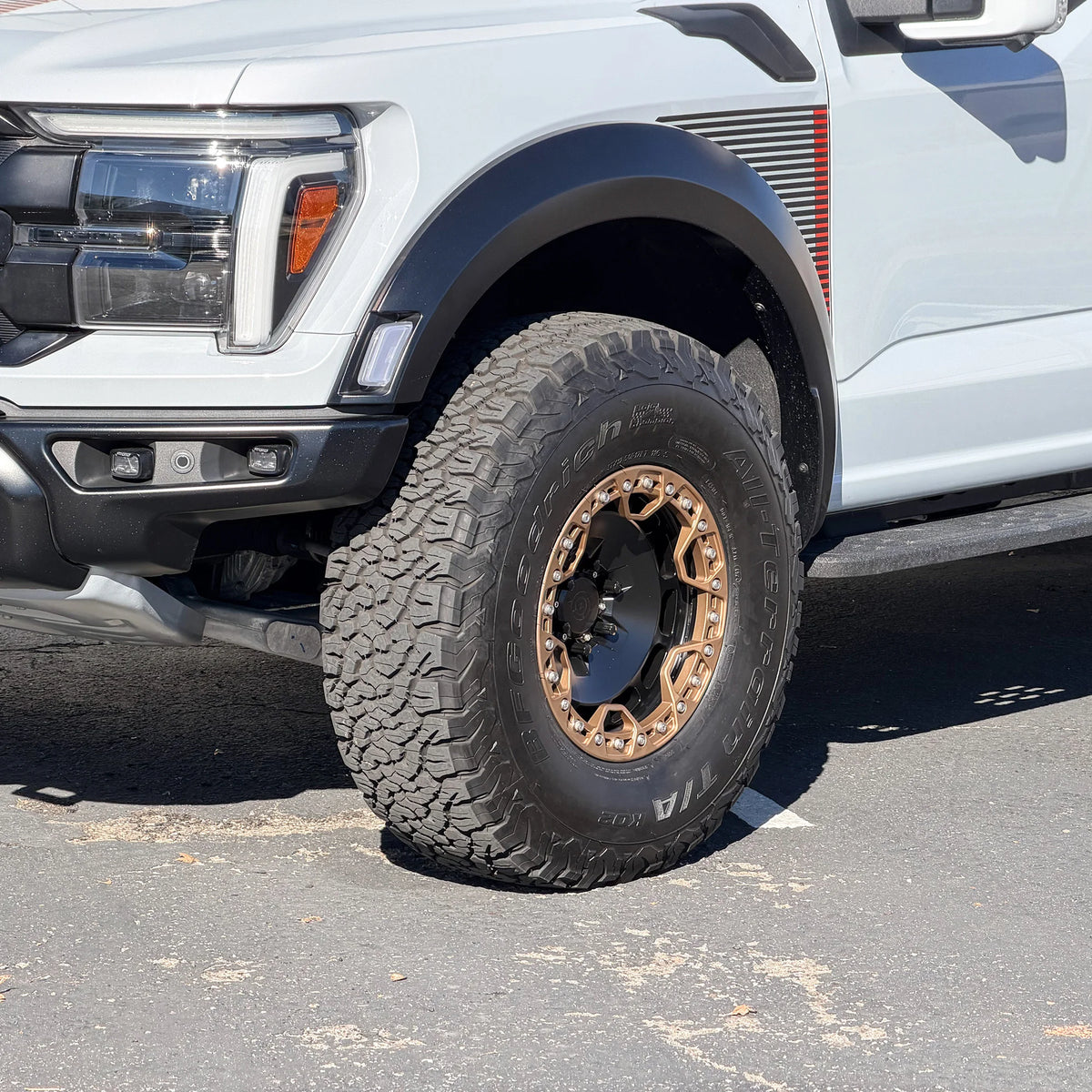

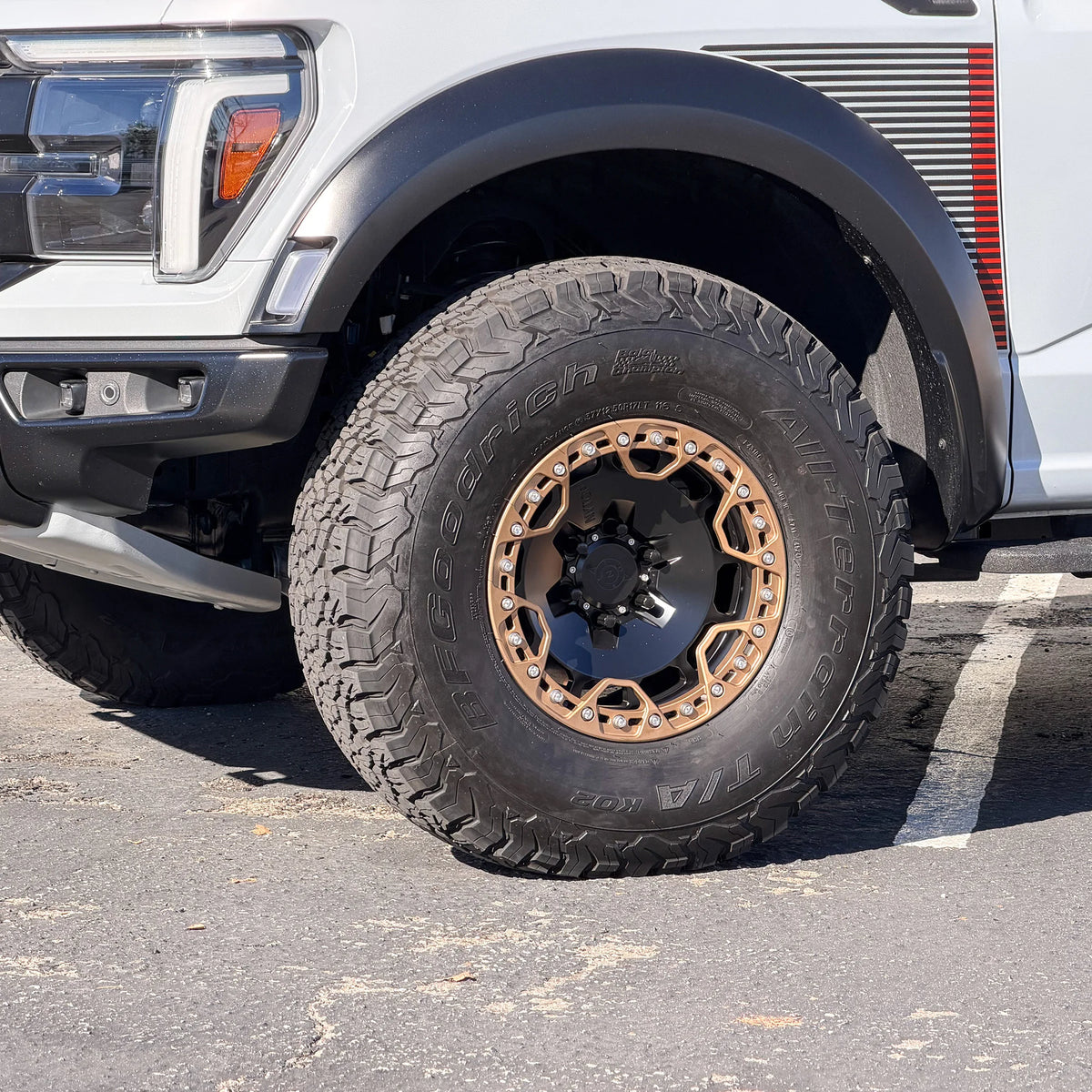

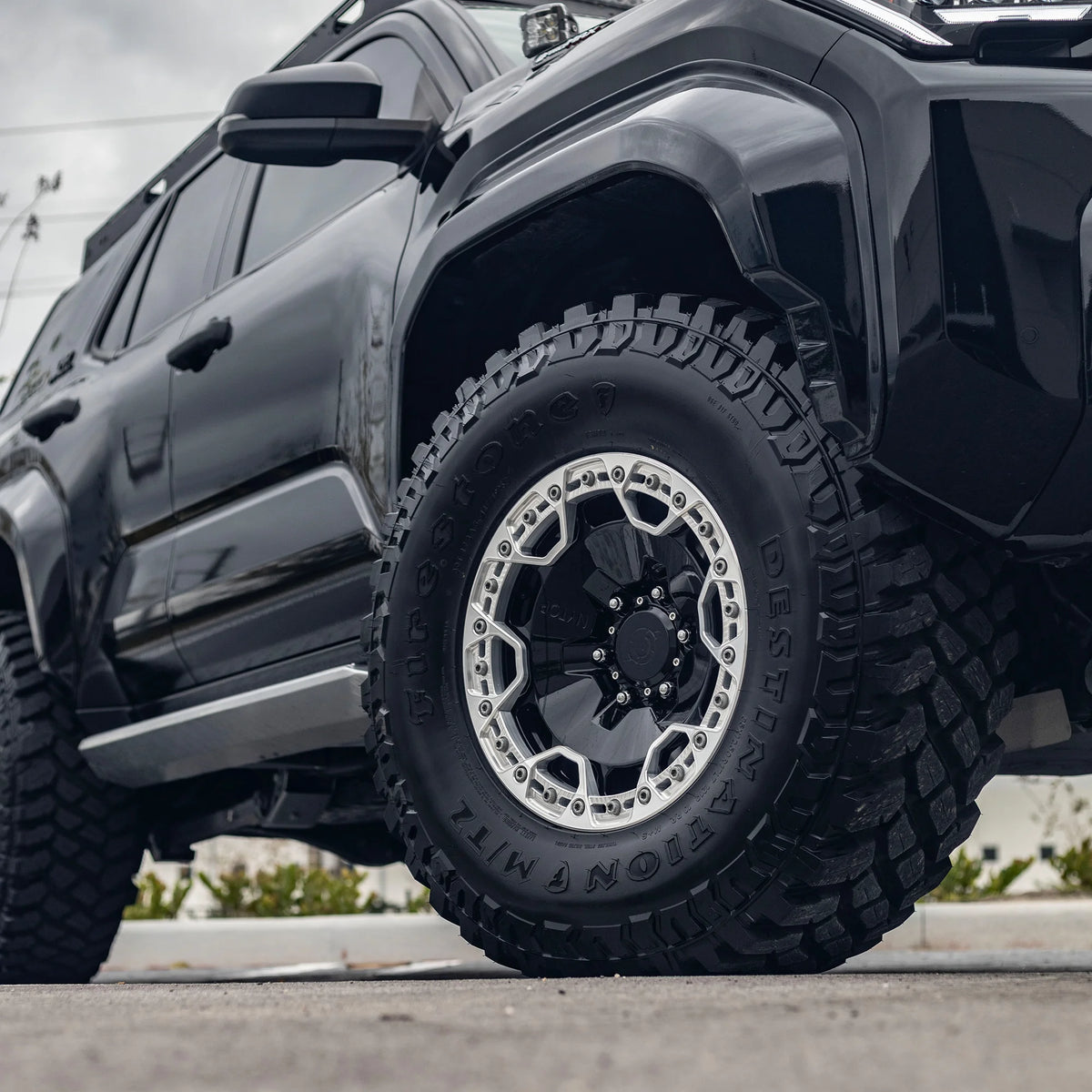

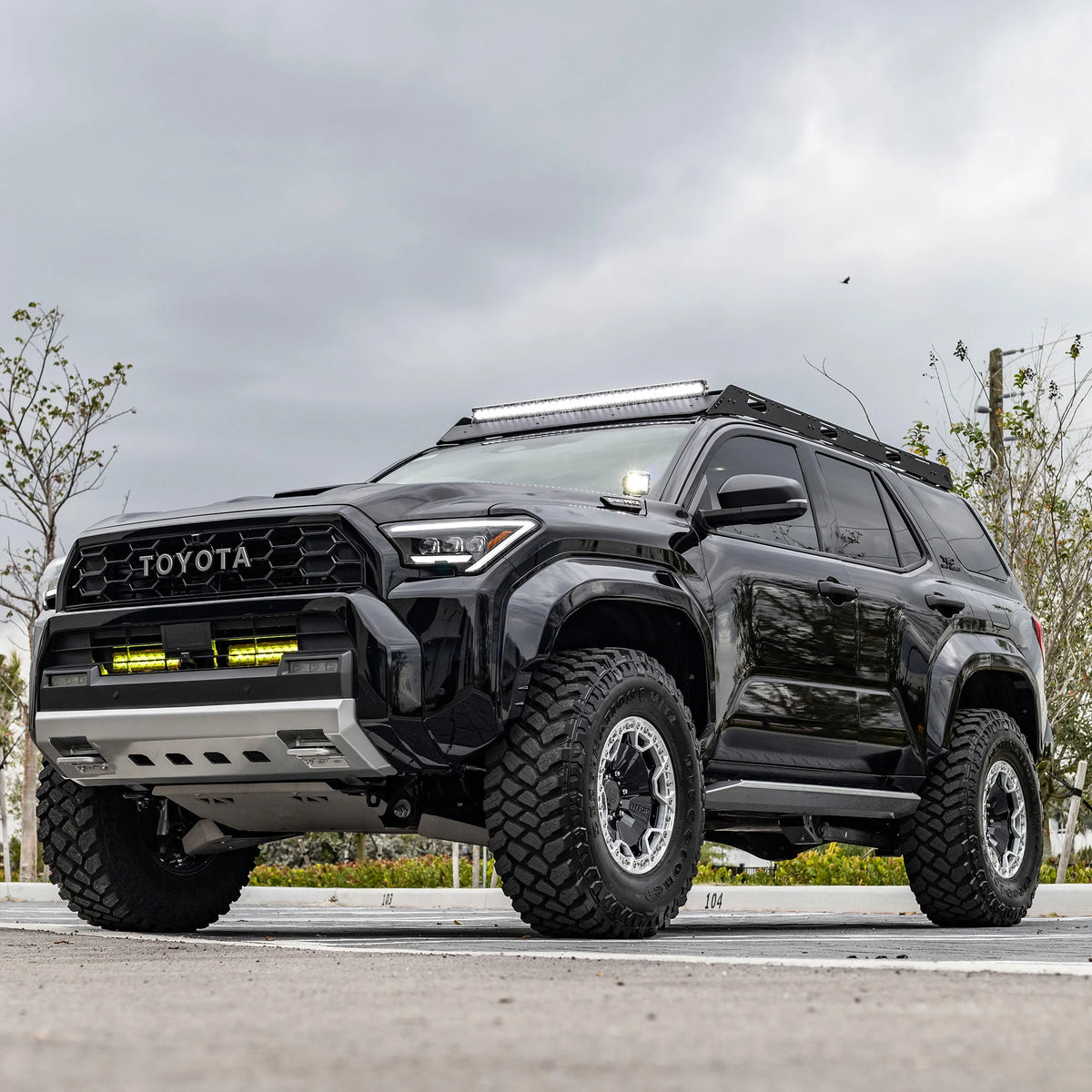

17 inch Floating Beadlock Ring for ADV-Classic Wheels

Priced per ring. Beadlock wheels sold separately. Off-road use only.

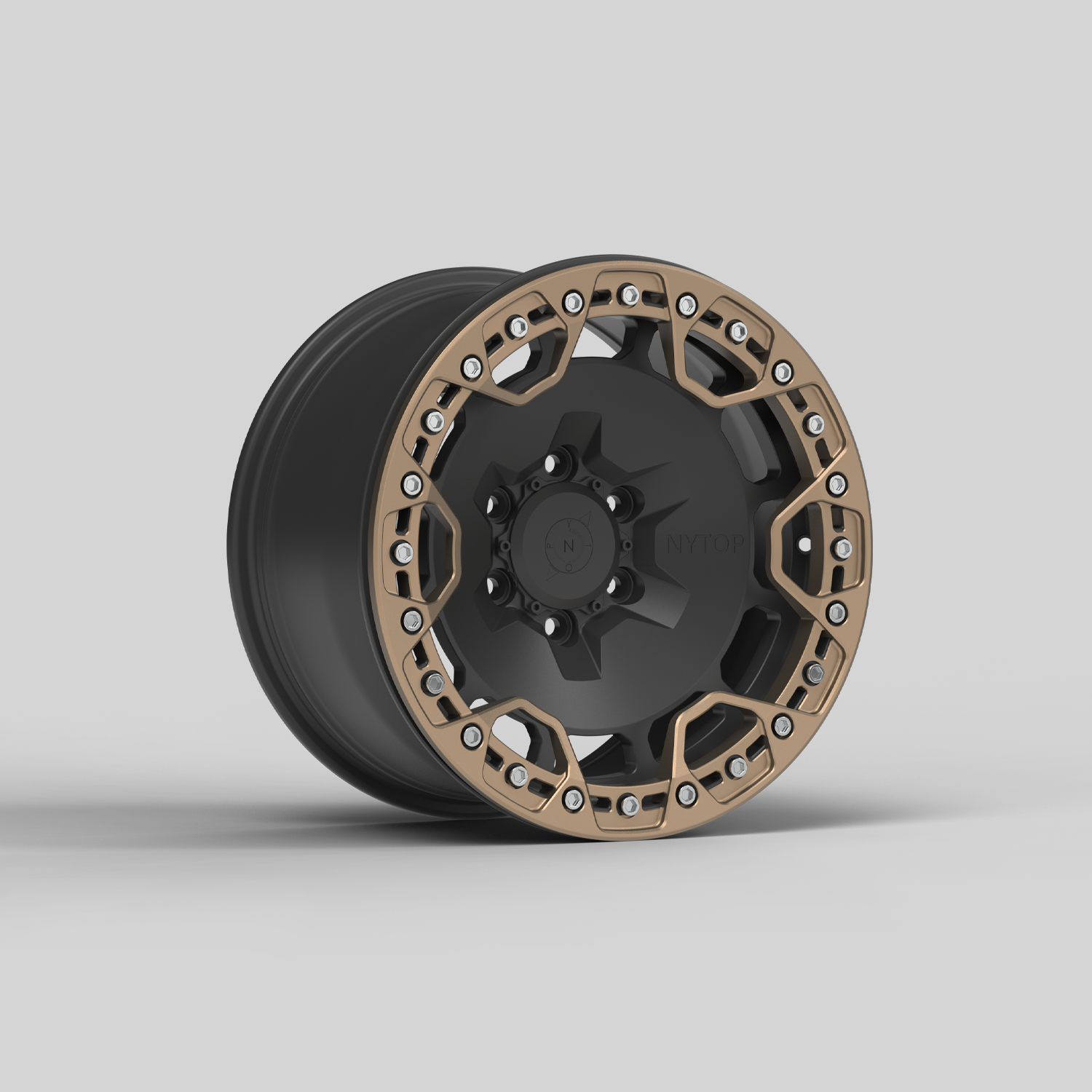

Our Beadlock Rings are CNC machined forged 6061-T6 aerospace-grade aluminum. These rings allow you to mount tires on our beadlock-capable wheels for off-road use.

Our proprietary beadlock ring design is engineered for a smoother, more efficient mounting process. Unlike traditional setups that require pry bars to seat the tire bead into the wheel face, our rings feature a self-guiding profile that gradually draws the bead into place as you tighten the bolts.

Mounting the tire bead onto the beadlock ring will decrease the offset by 13.5 mm.

Max load rating 2,850 lbs per wheel.

The beadlock ring weighs around 5.5 lbs.

All necessary mounting hardware included.

Torque down all the M10 bolts to 25 ft-lbs./33 Nm. in a star pattern.

Please email contact@nytop.com for custom offset and custom decal requests.
